The evolution of steel structure design has revolutionized the construction industry by making a substantial contribution to the building of more efficient, stronger, and taller buildings. Among the principal factors that make such advancements possible is the box column—a critical member of both conventional steel structure systems and fabricated steel structure assemblies. This article offers thorough information on box columns, such as structural advantages, fabrication, design considerations, and usage in contemporary constructions.
What is a Box Column?

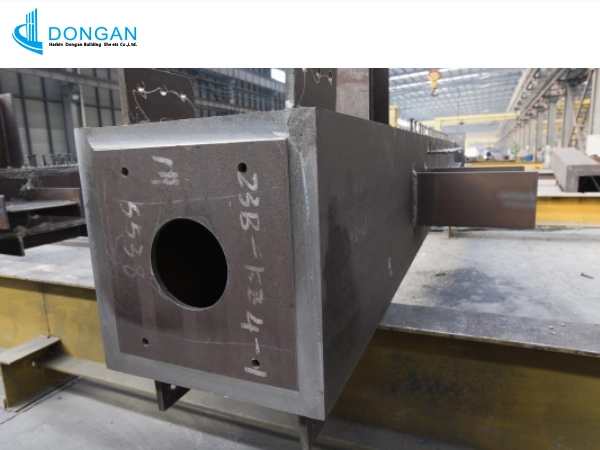

A box column is an almost square or rectangular structural member formed by welding steel plates on an encased-section shape. Unlike an open-section column represented by I-beams or H-columns, box columns have isotropic strength in all directions and therefore convey a higher propensity to offer high buckling, bending, and torsion strength. For that reason, box columns become a material of first choice for framing high-rise building structures, bridges, and factory plants.
Key features of Box Columns:
- Closed-section building – Provides high torsional stiffness and loading.
- High strength-to-weight – Unparalleled support with reduced material use.
- Modular building – Easily incorporated into fabricated steel building system structures.
- Aesthetic diversity – Can be exposed for a rough industrial look or concealed behind walls.
Advantages of Box Columns in Steel Structures
1. Better Load-Carrying Capability
Box columns have good load-carrying ability with heavy axial and lateral loads, and they are most suitable for skyscrapers and long-span construction. The closed box structure avoids local buckling and provides stability even under intense stress.
2. Maximum Material Utilization
In steel structure construction, box columns reduce material waste by concentrating support around the perimeter of the hollow column. This helps reduce overall weight without compromising strength, saving material and transportation costs.
3. Increased Seismic and Dynamic Load Resistance
Due to symmetrical geometry, box columns are suitable in earthquake-prone zones. Since they can sustain loads in various directions, they are incorporated in seismic-resistant steel structure frames.
4. Protection against Fire and Corrosion
Concrete filling box columns creates composite columns, thus enhancing fire resistance. Further, high-tech coatings such as galvanization or epoxy paints protect them from rusting, enhancing their longevity in such adverse conditions.
5. Architectural Flexibility
Architects are fond of box columns because they have crisp lines and a very subtle profile. They can easily integrate with modern facades or be concealed behind walls, providing structural strength and the flexibility of design.
Fabrication Procedure for Box Columns
Fabrication of the box column is an integral step in the production of manufactured steel structures. The process entails the following steps of precision:
1. Cutting & Material Selection
Heavy steel plates (usually ASTM A572 or A992) are selected based on project requirements. Laser, plasma, or waterjet cutting are precise cutting processes applied to obtain accurate measurements and clean cuts.
2. Assembly & Welding
The steel plates are robotically GMAW or SAW welded to form a rectangular or square closed box section. They are welded robotically so that there is more consistency and less human error.
3. Addition of Stiffener (If necessary)
Internal stiffeners are welded inside the box section for loaded or taller columns to prevent buckling and to more evenly distribute the loads.
4. Quality Control & Inspection
Non-destructive test methods, such as ultrasonic testing or radiographic testing, assure weld strength. Dimensional inspection can assure design specification compliance.
5. Surface Treatment & Finishing
The box column is treated accordingly:
- Sandblasting – Rust and mill scale are stripped.
- Priming & Painting – Corrosion protection may be assured.
- Concrete Filling is discretionary, but can improve compressive strength and fire resistance.
Design Considerations for Box Columns
When designing a steel structure with box columns, the following must be considered by designers:
1. Requirements of loads
- Axial loads (vertical load).
- Lateral loads (wind, seismic).
- Eccentric loads (off-center).
2. Slenderness Ratio
The slenderness ratio of a column (length with respect to thickness) influences the buckling strength. Box columns with thicker walls or internal stiffeners are better suited for slender configurations.
3. Connection Details
Box columns should be well-connected to foundations and beams. Below are common practices by this methodology:
- Direct welded connections – Stronger but prone to inaccurate alignment.
- Bolted end-plate connections – Simpler to assemble at the site in fabricated steel structure work.
- Base plates with anchor bolts – Provide stability at the base level.
4. Thermal Expansion & Contraction
Steel expands when hot, and thus, expansion joints or flexible connections may be needed for large structures.
Applications of Box Columns in Building Construction
1. Skyscrapers & High-Rise Buildings
Engineers widely use box columns in skyscrapers because of their slim profile and strong load-carrying capacity, which can maximize the use of building space. For example, the Burj Khalifa and Shanghai Tower employ box steel-concrete composite columns for stability.
2. Industrial & Warehouse Buildings
Steel frame warehouses have box columns that carry heavy open spaces without supports in between, hence guaranteeing storage and logistics efficiency.
3. Bridges & Infrastructure
The use of steel box columns as pylons and piers is because box girder bridges will mostly employ them due to torsional rigidity against traffic dynamic loads.
4. Offshore & Marine Structures
Box columns are used in construction due to their resistance to corrosion if treated well, in shipbuilding, harbors, and oil rigs.
5. Modular & Prefabricated Building
Box columns are most suitable in modular buildings as they are easy to assemble and disassemble, thus minimizing construction time.
Future Box Column Trends
1. Advanced High-Strength Steels (AHSS)
New steel alloys with a higher yield strength enable an even lighter and thinner box column without compromising performance.
2. Steel Nodes 3D Printed
Additive manufacturing explores creating improved connection nodes with reduced welding in optimal connection nodes for box columns.
3. Intelligent Monitoring Systems
Internal sensors in the box column can measure stress, temperature, and corrosion in real time, enhancing the health monitoring of the structure.
Conclusion
Box columns have emerged as the backbone of modern-day steel structures and fabricated steel structure systems due to unparalleled strength, efficiency, and versatility. Be it is a skyscraper touching the sky or some gigantic industrial complexes, engineering advantages make it a must-have in present-day constructions.
With techniques of fabrication evolving ever more advanced and new materials being discovered, box columns will remain at the vanguard of producing robust, sustainable, and aesthetically pleasing structures. Therefore, knowing how to master box column efficiency is the most certain method for architects, engineers, and contractors alike to achieve the best designs for the built environment of the future.
