Space frame structures play a critical role in modern architecture and industrial construction. Engineers value them for their exceptional load distribution, lightweight behavior, and geometric flexibility. From airports and stadiums to industrial plants and exhibition halls, space frames enable large spans without interior columns. Their growing adoption reflects both technical maturity and economic efficiency.
What Is a Space Frame Structure
A space frame is a three-dimensional structural system composed of interconnected linear members arranged in a geometric pattern. Most systems rely on triangular units because triangles provide inherent geometric stability. Unlike planar trusses, space frames distribute loads in three dimensions, which reduces stress concentration.
Typical space frame members use circular or square hollow steel sections. Common steel grades include Q235, Q355, ASTM A36, and ASTM A572. These materials provide yield strengths ranging from 235 MPa to 355 MPa, supporting long-span applications.
Node connections define system performance. Bolted ball joints, welded joints, and cast steel nodes dominate the market. Bolted spherical joints often achieve tensile capacities above 500 kN per node, depending on diameter and bolt grade. Precision fabrication ensures tight tolerances, usually within ±1.5 mm for member length.
Engineers frequently apply space frames to spans between 30 and 120 meters. Some landmark projects exceed 200 meters with optimized geometry. Compared with traditional beam systems, a space frame can reduce steel consumption by 15% to 30% for the same span and load conditions. This reduction directly lowers foundation demands and construction costs.
Performance and Engineering Advantages of Space Frame
Space frame structures achieve high structural efficiency due to their three-dimensional force transfer. Loads applied at any point distribute across multiple members, which improves redundancy. This behavior enhances safety, especially under asymmetric loads such as wind or snow drift.
The strength-to-weight ratio remains one of the most important advantages. A typical space frame roof weighs between 25 and 45 kg per square meter, depending on span and design load. Reinforced concrete roof systems often exceed 120 kg per square meter for similar spans. Lower self-weight reduces seismic forces, which scale with mass.
Space frames perform well under seismic action. The multiple load paths allow energy dissipation without sudden failure. Many national codes, including EN 1998 and GB 50011, recognize space frames as favorable seismic systems when properly detailed.
Thermal and service integration also benefits from the open geometry. Designers can route HVAC ducts, lighting, sprinklers, and cable trays through the structural depth. This integration reduces ceiling height and overall building volume. In large commercial halls, this approach can lower annual energy consumption by 5% to 8% due to reduced air volume.
Construction Methods and Cost Considerations of Space Frame
Manufacturers typically prefabricate space frame components in controlled factory environments. CNC cutting and automated welding ensure consistent quality. Factory fabrication can achieve material utilization rates above 95%, which minimizes waste.

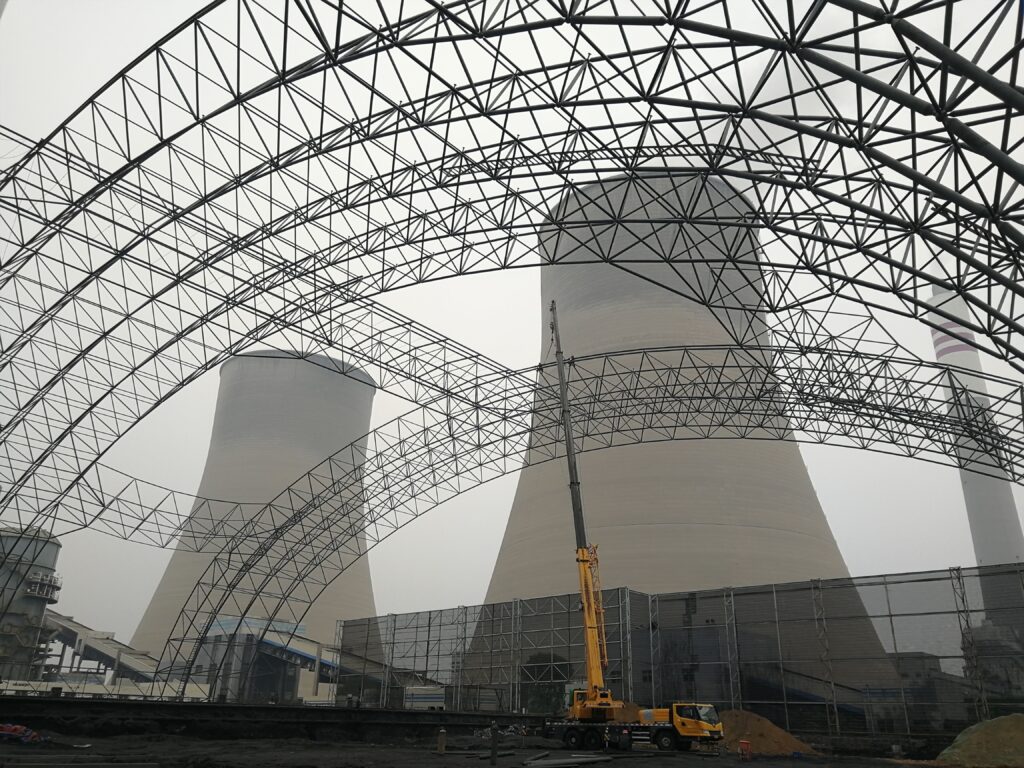

On-site assembly follows modular principles. Crews assemble members and nodes using bolts or high-strength fasteners. For medium projects, installation productivity often reaches 150 to 250 square meters per day per crew. Crane lifting capacity usually ranges from 25 to 80 tons, depending on assembly strategy.
Cost varies by region, steel price, and node type. In many markets, complete space frame systems cost between USD 45 and USD 90 per square meter for roof structures. This range includes steel members, nodes, surface treatment, and basic installation. Complex geometries or high corrosion protection can increase costs by 15% to 25%.
Surface treatment affects lifecycle economics. Hot-dip galvanizing provides corrosion protection for 25 to 50 years in most environments. Paint systems require more frequent maintenance but offer lower initial cost. Life-cycle analysis often shows galvanizing reduces total ownership cost by 20% over 30 years.
Applications and Design Flexibility
Space frame structures serve a wide range of building types. Airports use them for terminal roofs because they allow column-free halls exceeding 100 meters. Sports stadiums rely on space frames to support retractable or lightweight roofing systems. Industrial warehouses benefit from clear spans that improve logistics efficiency.
Architects value the visual expression. The repetitive geometry creates a high-tech aesthetic that aligns with modern design language. Designers can vary depth, module size, and curvature to achieve unique forms. Curved space frames often support domes, barrel vaults, and free-form roofs.
Environmental performance also drives adoption. Lightweight roofs reduce embodied carbon. Studies show that optimized steel space frames can lower embodied CO₂ by 10% to 18% compared with conventional steel beam roofs. Recyclability further improves sustainability credentials, since structural steel maintains recovery rates above 90% globally.
Digital design tools enhance accuracy. BIM and parametric modeling allow rapid optimization of member sizes and node forces. Engineers can reduce material usage while maintaining safety margins. This approach shortens design cycles and lowers project risk.
Space frame structures combine structural efficiency, architectural flexibility, and economic performance. Their ability to span large areas with minimal material makes them ideal for modern infrastructure and industrial buildings. As digital design and fabrication continue to improve, space frames will remain a core solution for long-span construction worldwide.
